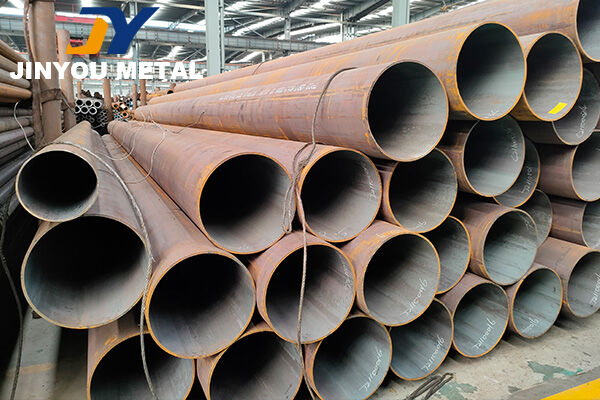

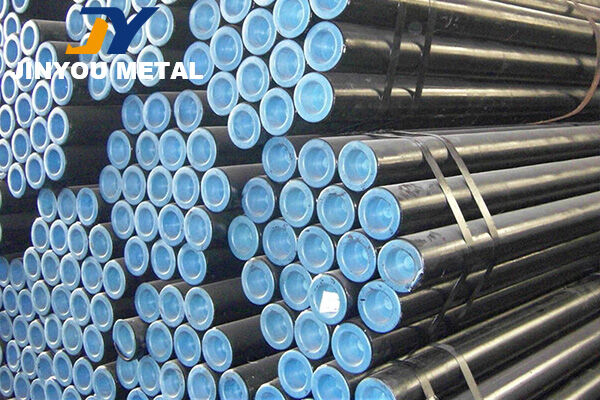

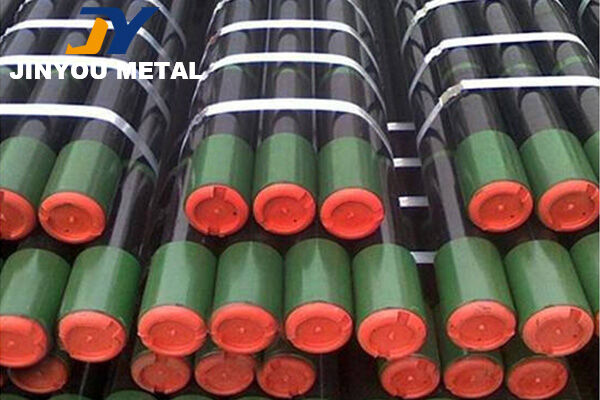

Carbon Steel ERW Pipe

Out Diameter: 1/2" - 24".

Wall Thickness: 1.65 - 20mm.

Length: 3-12m, or according to customer's requirement.

End: Plain End, Beveled End, Treaded.

Standard: ASTM 5L, ASTM A53, ASTM A178, ASTM A500/501, ASTM A691, ASTM A252, ASTM A672, EN 10217.

Steel Grade: API 5L: PSL1/PSL2 Gr.A, Gr.B, X42, X46, X52, X56, X60, X65, X70.

ASTM A53: GR.A, GR.B.

EN: S275, S275JR, S355JRH, S355J2H.

GB: Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360-L555.

Stock: 10000 Ton/Month.

Delivery: Within 10 days after deposit.

Payment: TT, LC, D/P.

Packing: Bare of Bundled or pvc packing or for the client's requiremen.

Usage: For conveying gas, water and oil either in the oil or natural gas industries.

Contact us: +86 13373795593.

Send E-mail

Whatsapp/Wechat

PRODUCT DESCRIPTION

Surface: Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy, Fusion Bond Epoxy, 3-layers PE).

Packing: Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.

Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Hardness Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, NDT TEST ( ET TEST, RT TEST, UT TEST).

SMALL DIAMETER ERW STEEL PIPE

Out diameter		Sch 5		Sch 10		Sch 40
Inch	mm	Thickness	Kg/mtr	Thickness	Kg/mtr	Thickness	Kg/mtr
1/2"	21.3	1.65	0.81	2.11	1.01	2.77	1.29
3/4"	26.7	1.65	1.03	2.11	1.3	2.87	1.71
1"	33.4	1.65	1.31	2.77	2.12	3.38	2.54
1 1/4"	42.2	1.65	1.93	2.77	3.15	3.68	4.11
1 1/2"	48.3	1.65	1.93	2.77	3.15	3.68	4.11
2"	60.3	1.65	2.42	2.77	3.98	4.81	5.31
3"	88.9	2.11	4.58	3.05	6.54	5.49	11.45
3 1/2"	101.6	2.11	5.25	3.05	7.52	5.74	13.77
4"	114.3	2.11	5.25	3.05	7.52	5.74	13.77
5"	141.3	2.77	9.5	3.4	11.74	6.55	22.1
6"	168.3	2.77	11.47	3.4	14.04	7.11	28.68
8"	219.1	2.77	14.99	3.76	20.25	8.18	43.16

LARGE DIAMETER ERW STEEL PIPE

OD		WT
Inch	mm	8 5/8"	219.1mm	10 3/4"	273.1mm	12 3/4"	325.0mm	14"	355.6mm
0.157	4
0.197	5
0.236	6
0.276	7
0.315	8
0.354	9
0.394	10
0.133	11
0.492	12.5
0.551	14
0.63	16
0.689	17.5
0.748	19
0.787	20

LARGE DIAMETER ERW STEEL PIPE

OD		WT
Inch	mm	16"	406.4mm	18"	457.7mm	20"	508.0mm	24"	610mm	24 4/5"	630.0mm
0.157	4
0.197	5
0.236	6
0.276	7
0.315	8
0.354	9
0.394	10
0.133	11
0.492	12.5
0.551	14
0.63	16
0.689	17.5
0.748	19
0.787	20

TEST METHOD

Our products are of high quality and are thoroughly inspected before shipping.

PRODUCT ADVANTAGES

1.We are factory, our carbon pipe price is lower than 99% of other suppliers.

2.Large storage capacity, fast delivery.

3.Complete specifications, we basically have the goods you need in stock.

4.Strictly control product quality to ensure that customers receive high-quality products.

5.Support product customization.

6.More than 15 years of foreign trade experience, customers in more than 50 countries.

7.Support any third-party inspection before shipment.

OUR FACTORY

SHAANXI JINYOU METAL TECHNOLOGY CO., LTD is a a manufacturer of stainless steel and carbon steel product. We have well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in mechanical manufacturing , metallurgical minerals , building materials, shipping, aircraft, automobile and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We have an absolute advantage in the stainless steel and carbon steel industry.

We have imported equipment, professional masters, 48 production lines with high production efficiency and complete specifications. We have more than 10,000 tons of inventory per month, and the delivery speed is very fast. For products in stock, it can be shipped within 5 days. We support product customization, and the delivery time of customized products will not exceed a month. Customer satisfaction is the basis of our service. If you need our products, please contact our professional sales as soon as possible. We give you the most professional and reasonable quotation.

OUR HONORS AND CERTIFICATES

Our products go through strict quality inspection and can pass any third party test
